¶ 1. Material Information
¶ 1.1 Overview
Modeling PAS10 Black is a budget-friendly resin material featuring moderate strength and toughness, not easily to crack. Fast printing and production ability are excellent that it can print detailed, complex structures, while printed object is fast-curing, making post-processing fast and convenient. The matte finish performs well detailed surface and steadily. Low in viscosity and odor.
¶ 1.2 Recommendations on Applications
- Scenarios demanding in layer lines.
- Miniatures, mecha parts with many curved and flat parts.
- Appearance prototype validation demanding in dimensional and assembly precision.
¶ 1.3 Performance
| Basic Properties of Modeling PAS10 Black | |||
| Categories | Properties | Criteria | Value |
| Rigidity | Tensile Strength (MPa) | ASTM D638 | 48 |
| Flexural Strength (MPa) | ASTM D790 | 88 | |
| Flexural Modulus (MPa) | ASTM D790 | 2485 | |
| Toughness | Elongation at Break (%) | ASTM D638 | 15 |
| Impact Strength (Notched) (J/m) | ASTM D256 | 27 | |
| Essential Work of Fracture (J/(2) | ISO 20795 | 2197 | |
| Heat resistance | Heat deflection temperature (0.45Mpa) (℃) | ASTM D648 | 55 |
| Mechanical | Shore D hardness | ASTM D2240 | 85 |
| Viscosity (mPa·s) | ASTM D4212 | 250 | |
| Water sorption (%) | ASTM D570 | 2.37 | |
Note: The properties were results of testing with HeyGears UltraCraft Cure curing machine, dry-cured for 10 min.
¶ 2. Design Suggestions
¶ 2.1 Design Parameters of Minimum Construction Performance
| Construction performance (HD 50μm) | ||
| Items | Pulsing Release Resin Tank | Regular Resin Tank |
| Min. gap width (mm) | 0.2 | 0.2 |
| Min. overhang length (mm) | 1.6 | 1.4 |
| Min. no-support offset (°) | 30 | 25 |
| Wall thickness (mm) |
With baffle 0.14mm No baffle 0.12mm |
With baffle 0.14mm No baffle 0.14mm |
| Min. drain hole diameter (mm) | 0.3 | 0.4 |
| Min. pillar diameter (mm) | 0.3 | 0.3 |
Note: The table presents the design requirements to guarantee at least the minimum construction performance of the material. Design parameters below them would lead to detail missing or print failure.
¶ 2.2 Recommended Design Parameters
Design parameters are recommended below for various kinds of structures which guarantee the printing success rate.
¶ 2.2.1 Thickness of Thin-Walled Structures
 |
Recommended values | |||
| Thin wall area (mm²) | 5*5mm | 10*10mm | 50*50mm | |
| Min. thickness of wall that provides support (mm) | 0.3 | 0.4 | 0.8 | |
| Min. thickness of wall that does not provide support (mm) | 0.3 | 0.4 | 1.0 | |
| Typical scenarios: |
1. Enclosures and structural components of consumer electronics; 2. Thin-walled parts on figure models. |
|||
| Testing method by HeyGears: |
1. The test was finished within 2 hours after part removal and washing; 2. The printed object was visually inspected, from the thinnest to the thickest areas, whether it was intact with no obvious deformation or misalign lines. 3. The minimum data that passed the test was recorded. |
|||
¶ 2.2.2 Hole
|
Types: | Straight, bent, blind | ||||
| Hole Depth (mm) | 2 | 10 | 30 | 40 | 50 | |
| Min. inner diameter of straight hole (mm) | 0.3 | 0.4 | 0.4 | 0.4 | 0.5 | |
| Min. inner diameter of bent hole (mm) | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | |
| Min. inner diameter of blind hole (mm) | 0.3 | 0.4 | 0.5 | 0.7 | 0.7 | |
| Typical scenarios: |
1. Sound holes in earphones, charging holes; 2. Small tubes, details on figures; 3. Industrial assembly parts. |
|||||
| Testing method by HeyGears: |
1. All holes were completely cleaned (washed and dried for about 3~5 times); 2. Straight holes: HeyGears team directed the light source at the holes from one end, inspected at the other end to see if the light could be seen, and recorded the minimum data that passed the test; 3. Blind holes: HeyGears team pointed a wire through the holes to see if it could reach the bottom (the other end), and recorded the minimum data that passed the test; 4. Bent holes: HeyGears team blew in the holes from one end with an air blow gun or an injector, inspected if the holes were ventilated, and recorded the minimum data that passed the test. |
|||||
¶ 2.2.3 Pillar
|
Types: | Pillars providing supports and not providing supports | ||||
| Depth/Height (mm) | 7 | 10 | 20 | 40 | 50 | |
| Min. diameter of pillar providing supports (mm) | 0.5 | 0.5 | 0.6 | 0.8 | 0.9 | |
| Max. diameter of pillar providing supports (mm) | 0.3 | 0.3 | 0.6 | 0.7 | 0.8 | |
| Typical scenarios: |
1. Positioning pins, connection of assembly parts; 2. Details, tubes, fingers; 3. Thin long structures like combs and needles. |
|||||
| Testing method by HeyGears: |
1. The test was finished within 2 hours after part removal, washing and curing; 2. The printed object was visually inspected to see if it was intact with no obvious deformation or misalign lines; 3. The minimum data that passed the test was recorded. |
|||||
¶ 2.2.4 Width of Raised & Depressed Details
|
Types: | Raised and depressed |
| Depth (mm) | 0.3 | |
| Min. width of depressed details (mm) | 0.22 | |
| Min. width of raised details (mm) | 0.10 | |
| Typical scenarios: |
1. Tagged text; 2. Special texture. |
|
| Testing method by HeyGears: |
1. The test was finished after part removal, washing, and curing; 2. The printed object was visually inspected to see if the details were intact and clear with no obvious missing; 3. The minimum data that passed the test was recorded. |
¶ 2.2.5 Drain Hole
|
Types: | Any type of drain holes in hollowed structures | ||
| Size of the area to add drain holes (mm²) | 10*10 | 20*20 | 30*30 | |
| Min. diameter of drain hole (mm) | 0.8 | 1.0 | 1.0 | |
| Typical scenarios: | 1. Drain holes in hollowed structures. | |||
| Testing method by HeyGears: |
1. During part removal and washing, the printed object was washed and blown dry 5 times for testing; 2. The holes were visually inspected to see if they had been cleaned completely with no resin or misalign lines; 3. The minimum data that passed the test was recorded. Notes: Only materials whose viscosity is 200, 1000, 3000mPa·s need to be tested. |
|||
¶ 2.2.6 Acute Angle
|
Types: | Acute parts of various wall thickness | ||||
| Wall thickness (mm) | 1 | 2 | 3 | 4 | 5 | |
| Smallest acute angle (°) | 5 | 10 | 10 | 10 | 10 | |
| Typical scenarios: | 1. Acute parts | |||||
| Testing method by HeyGears: |
1. The test was finished within 2 hours after part removal and washing; 2. The printed object was visually inspected to see if the acute parts were intact with no obvious deformation or misalign lines; 3. The minimum data that passed the test was recorded. |
|||||
¶ 2.2.7 Gap
|
Types: | Gaps between curved parts and gaps between flat parts | ||
| Depth/Height of curved part (mm) | 10 | 15 | 20 | |
| Gap width (mm) | 0.25 | 0.25 | 0.25 | |
| Depth/Height of flat part (mm) | 10 | 15 | 20 | |
| Gap width (mm) | 0.20 | 0.20 | 0.25 | |
| Typical scenarios: |
1. One-piece structure (gears, architecture miniatures); 2. Details on surface, texture structures. |
|||
| Testing method by HeyGears: |
1. The test was finished within 2 hours after part removal, washing (no curing); 2. Printed connection parts were visually inspected if they could be separate intactly; 3. The minimum data that passed the test was recorded. |
|||
¶ 2.3 Gap in Connections
|
Types | Fit, tight, loose | |||
| Images | Contact shape | Tight (mm) | Fit (mm) | Loose (mm) | |
|
Square | ≤0 | 0.02 | ＞0.04 | |
|
Circle | ＜-0.02 | -0.02 | ＞0 | |
|
Ball | ＜-0.05 | 0.01 | ＞0.02 | |
|
Polygonal | ≤-0.06 | 0.8 | ＞0.1 | |
|
C-shaped/U-shaped | ＜-0.02 | 0 | ＞0.02 | |
| Testing method by HeyGears: |
1. Test was done after part removal, washing and curing. 2. Column-shaped connection structures were taken out from the sprue. 3. The structures were assembled, from the loosest ones to the tightest ones; 4. Data was recorded according to the assembly results. |
||||
¶ 2.4 Tolerance
| Printed dimensions and tolerances | |
Types: | Any structure | ||
| Max. value among dimensions of a printed object (mm) | 20 | 50 | 100 | ||
| Tolerance | ±0.05 | ±0.05 | ±0.15 | ||
| Testing method by HeyGears: |
1. Thin walls or other special structures were not considered; 2. Measurement was done within 2 hours after part removal, washing and curing; 3. Printing parameters were the same when using Pulsing Release Resin Tank and using regular resin tank. |
||||
¶ 3. Process and Configuration

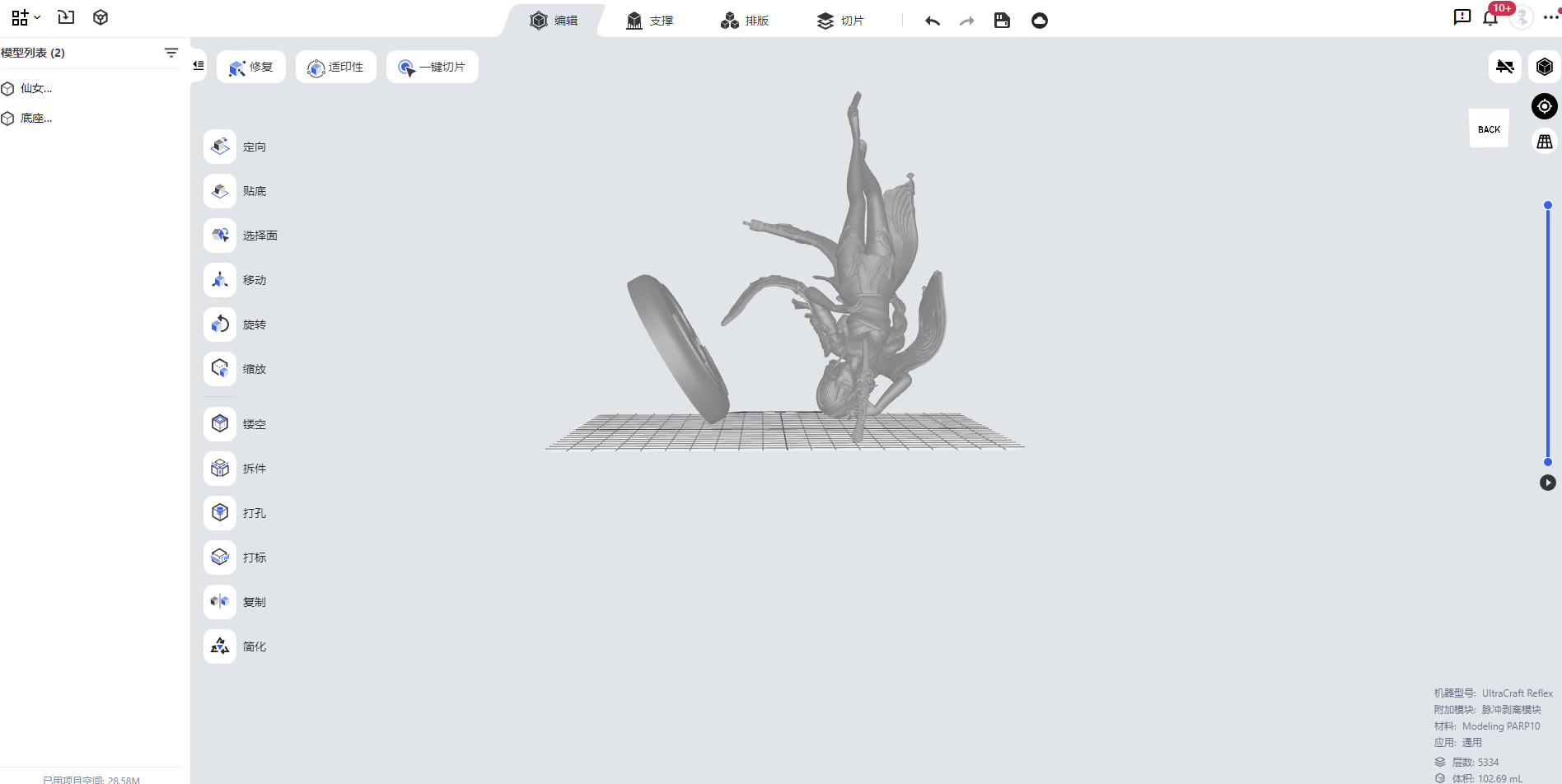

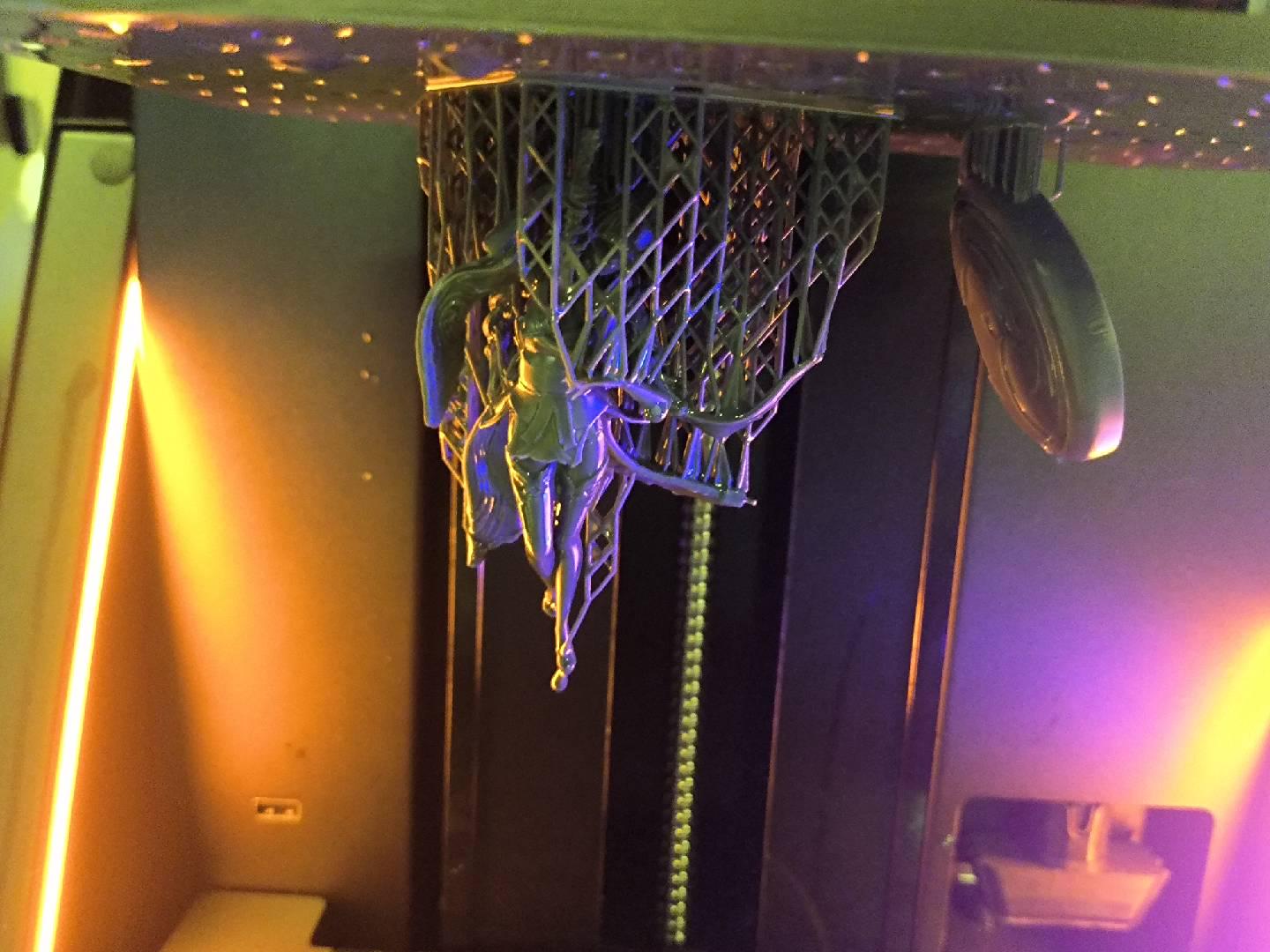

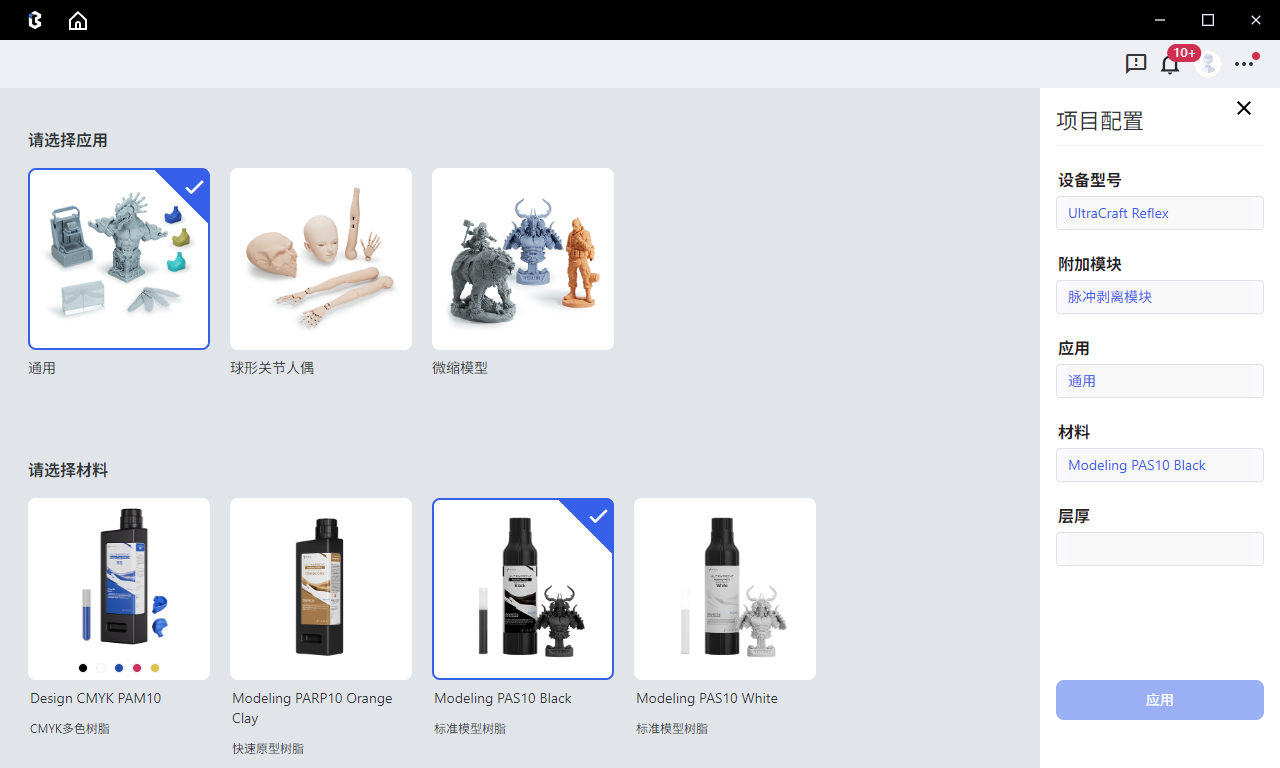

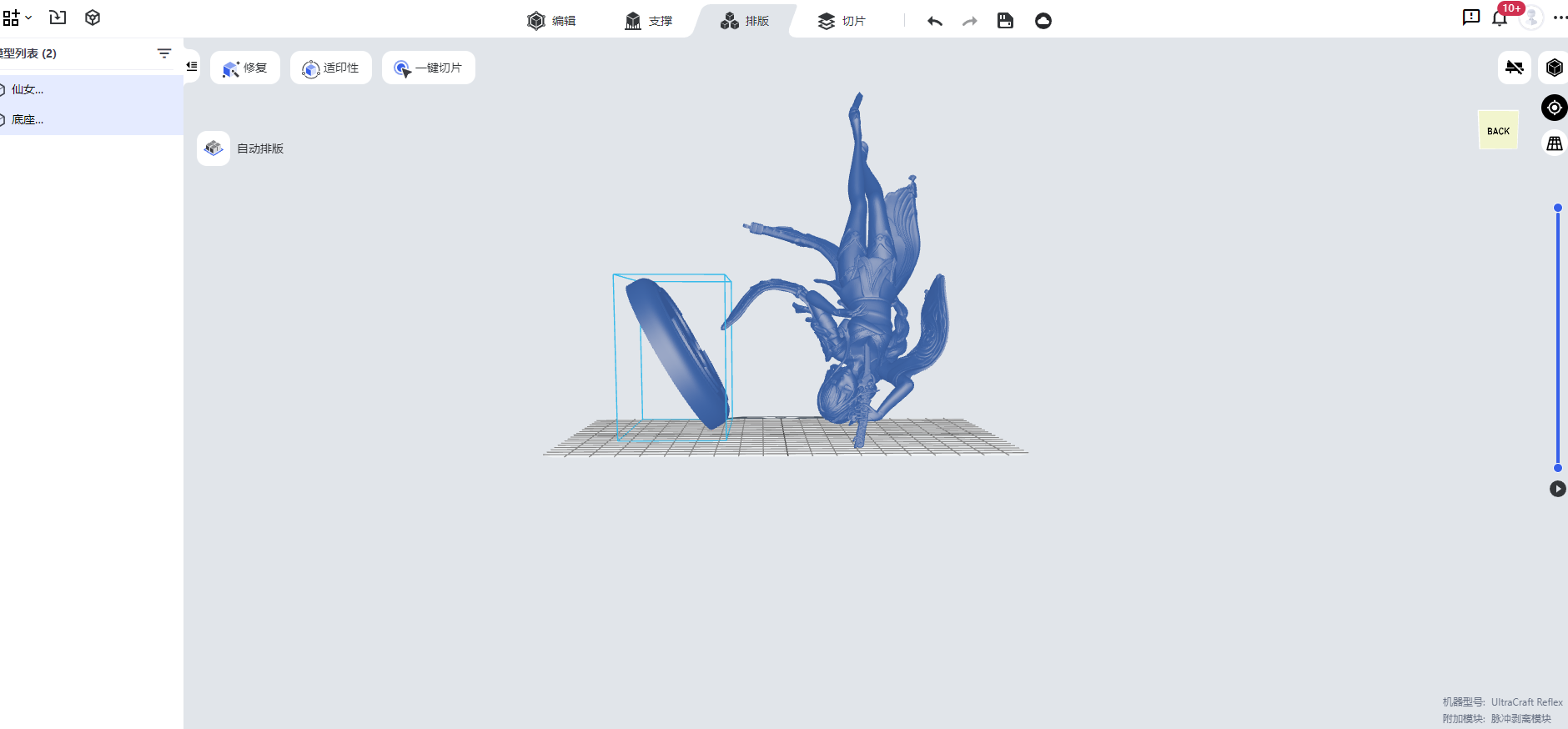

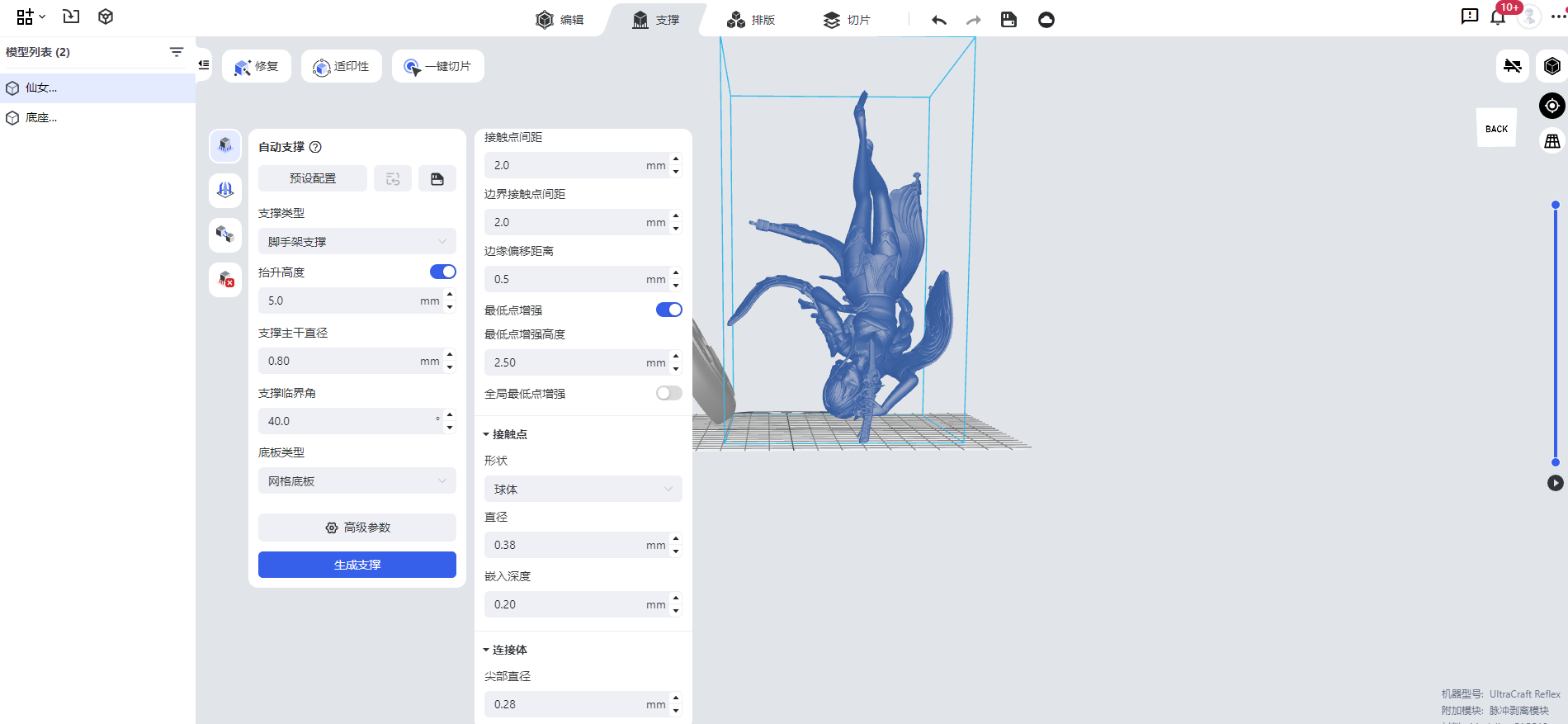

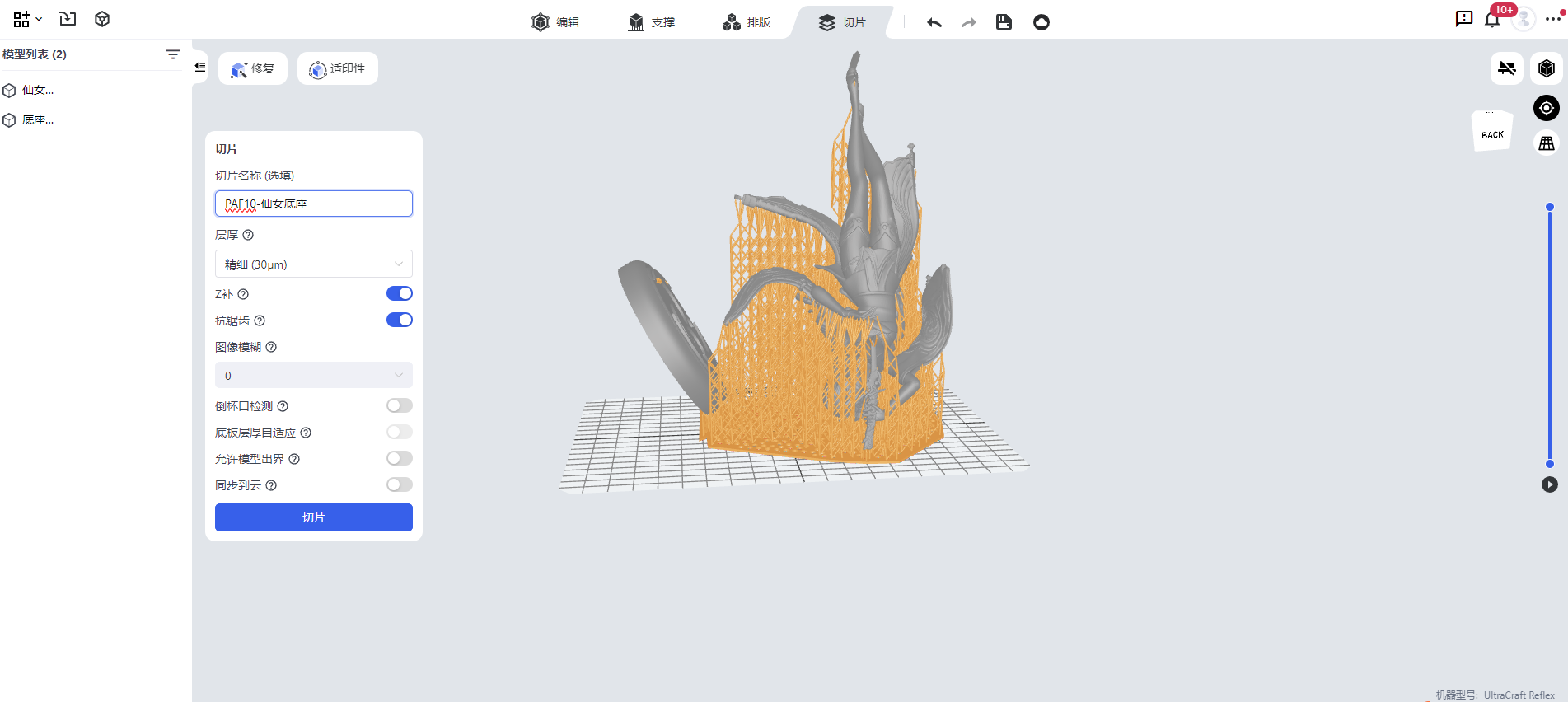

¶ 3.1 Support Parameters
| Support parameters (regular resin tank) | ||
| Support areas | Parameter items | Default values |
| Support body | Lift height (mm) | 5 |
| Trunk diameter (mm) | 0.7 | |
| Overhang angle (°) | 40 | |
| Support density | Anchor distance (mm) | 2 |
| Border anchor distance (mm) | 2 | |
| Connection | Top diameter (mm) | 0.3 |
| Connection length (mm) | 1.5 | |
| Contact | Contact shape | Sphere |
| Diameter (mm) | 0.38 | |
| Embedded depth (mm) | 0.2 | |
Notes: For the first print, it's advised not to change the support parameters for successful printing. Sufficient supports are needed on areas such as lowest points and islands, considering the center of gravity shifting during printing, which might cause the object to shake and lead to misalignment. Appropriate improvements might be done on support parameters after the first print is successfully finished.
| Support parameters (printing with pulsing release resin tank) | |||
| Support areas | Parameter items | Default values | Minimum values |
| Support body | Lift height (mm) | 5 | 5 |
| Trunk diameter (mm) | 0.7 | 0.65 | |
| Overhang angle (°) | 40 | 35 | |
| Support density | Anchor distance (mm) | 2 | 2.5 |
| Border anchor distance (mm) | 2 | 2.5 | |
| Connection | Top diameter (mm) | 0.28 | 0.26 |
| Connection length (mm) | 1.5 | 1.5 | |
| Contact | Contact shape | Sphere | Sphere |
| Diameter (mm) | 0.38 | 0.36 | |
| Embedded depth (mm) | 0.2 | 0.2 | |
Notes: Using a Pulsing Release Resin Tank can hugely decrease the peeling force and improve the success rate of printing. Supports can be 30% less compared with those using a regular resin tank. But support parameter values are advised not to be weaker than the min. parameters provided above, or there will be some printing risks.
¶ 3.2 Parameters for Slicing in Other Slicer Software (Not Recommended)
| Chitubox (printing with regular resin tank) | ||
| Support areas | Parameter items | Default values |
| Basic config. | Z lift height (mm) | 5 |
| Raft shape | Cross grid | |
| Raft thickness (mm) | 1.0 | |
| Overhang angle (°) | 45 | |
| Support density | Anchor distance (mm) | 2.0 |
| Connection | Top diameter (mm) | 0.3 |
| Connection length (mm) | 15 | |
| Trunk Diameter (mm) | 0.9 | |
| Contact | Contact shape | Sphere |
| Diameter (mm) | 0.4 | |
| Embedded depth (mm) | 0.2 | |
| Voxeldance Tango (printing with regular resin tank) | ||
| Support areas | Parameter items | Default values |
| Basic config. | Z lift height (mm) | 5 |
| Raft shape | Convex hull | |
| Raft thickness (mm) | 1.0 | |
| Overhang angle (°) | 45 | |
| Support density | Anchor distance (mm) | 2.0 |
| Connection | Top diameter (mm) | 0.3 |
| Connection length (mm) | 15 | |
| Trunk Diameter (mm) | 0.9 | |
| Contact | Contact shape | Sphere |
| Diameter (mm) | 0.4 | |
| Embedded depth (mm) | 0.2 | |
Note: It's advised to use a "safer" parameter configurations and have some tests first, as HeyGears printers cannot guarantee a high printing success rate for models sliced with a third-party slicer software which does not enjoy HeyGears print strategies.
¶ 3.3 Washing
| Material | Cleaning devices | Recommended process | ||
| Washing settings | Cleaning solution | Washing time | ||
| Modeling PAS10 Black | HeyGears UltraCraft Wash | Rotation speed 180r/min | Isopropyl alcohol 99.9% | 3-5 min |
| Manual cleaning | Ultrasonic cleaning | Isopropyl alcohol 99.9% | 3-5 min | |
