¶ Reflex 2 Pulsing Release Module 2 Installation
¶ Installation
¶ Unboxing
¶ 1. Pulsing Release Module 2 Unboxing
-
Check if the packaging is intact.
-
Open the packaging box, take out the equipment and accessories.
-

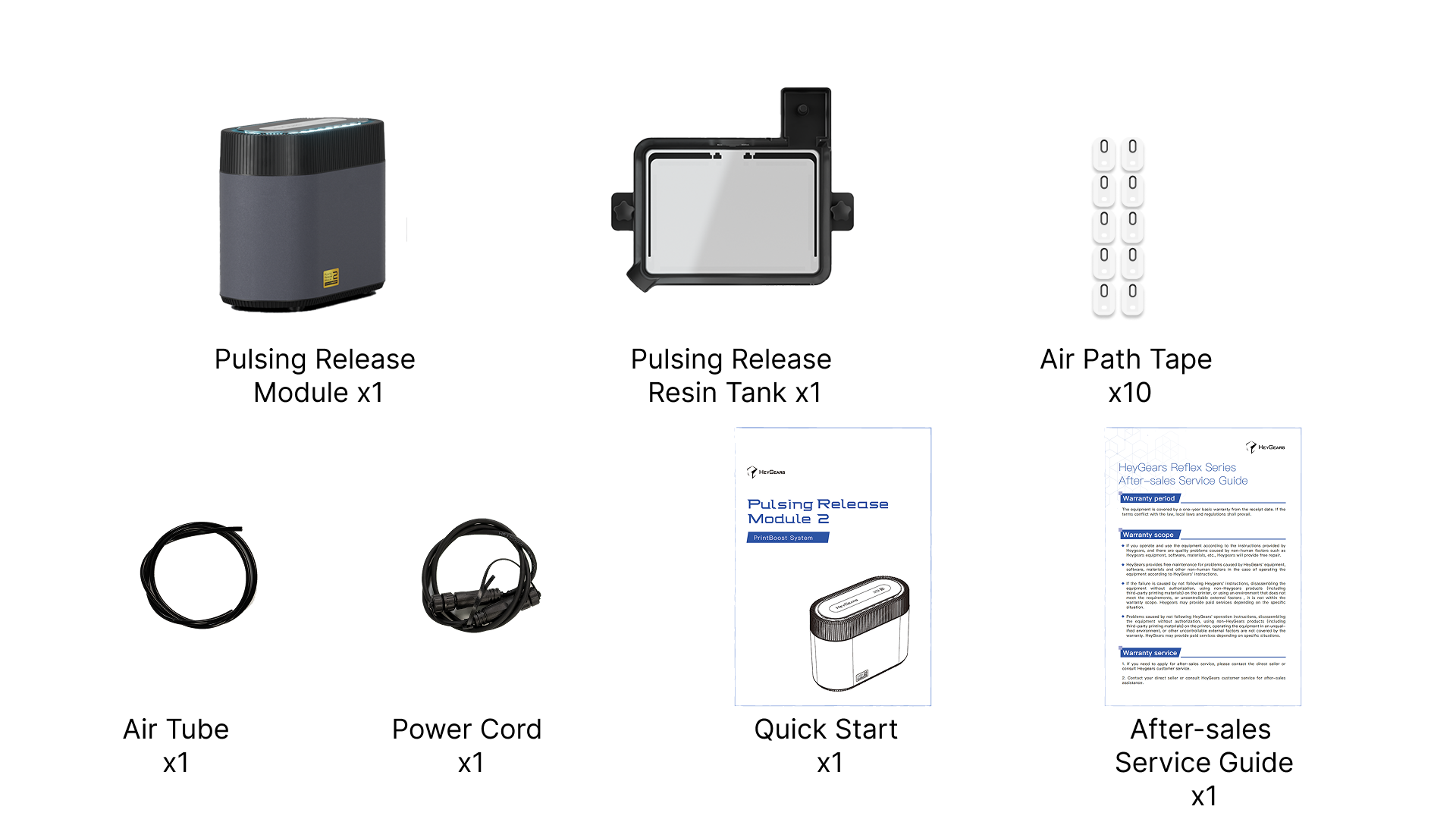

check if the accessories are complete.
¶ 2. Pulsing Release Resin Tank Unboxing
-
Open the packaging box and take out the pulsing release resin tank.
-

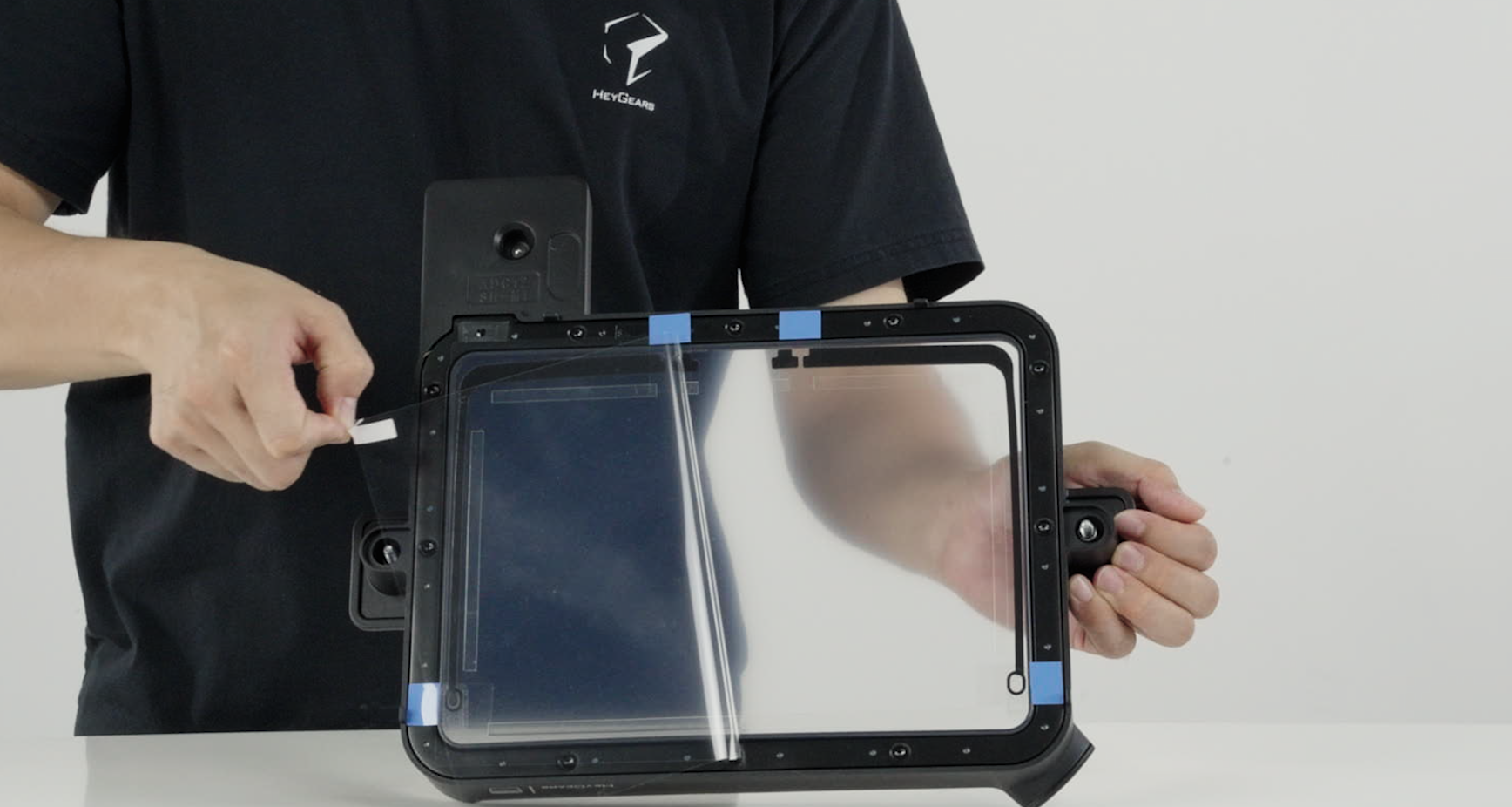

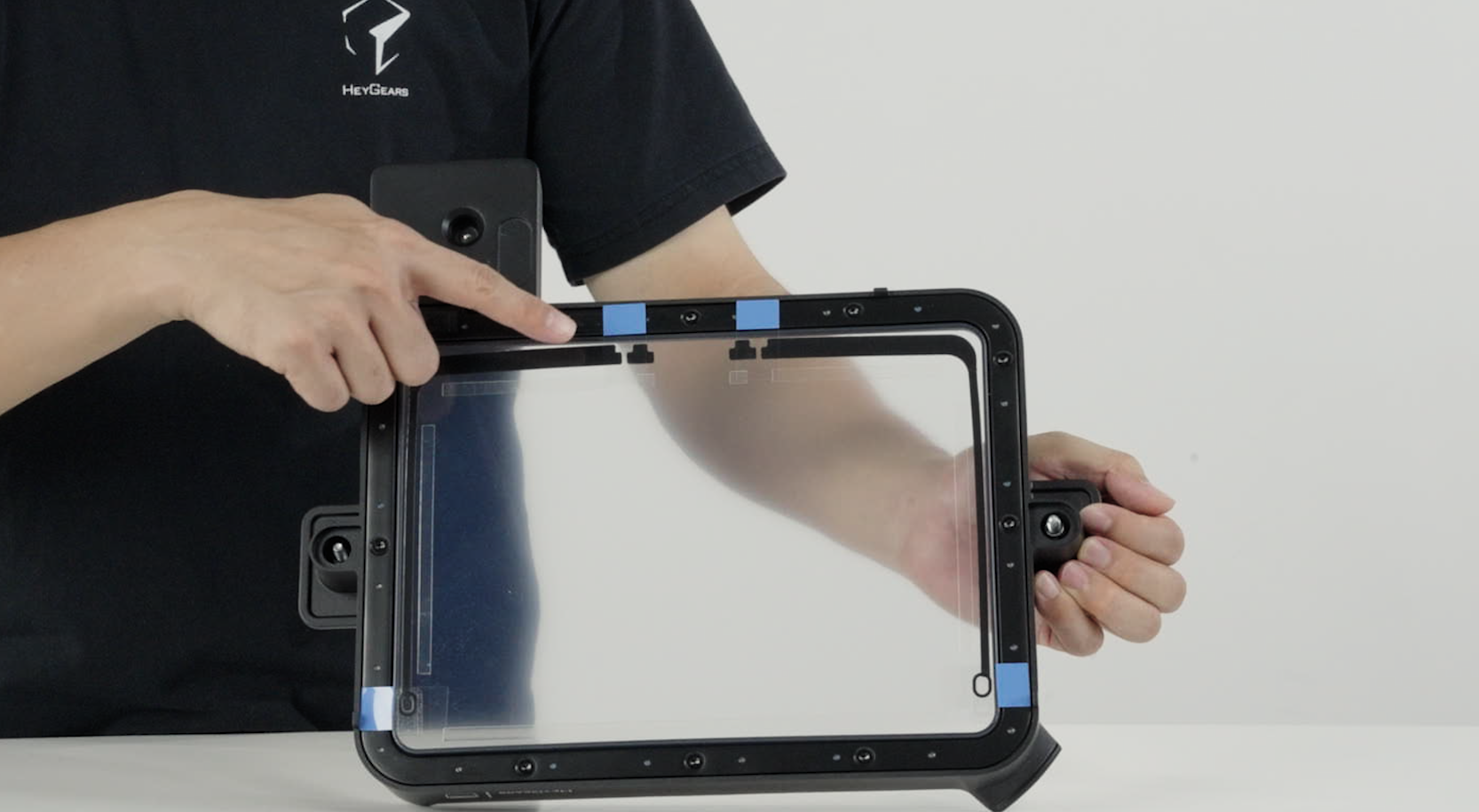

Remove the release protective film on the back of the pulsing release resin tank.
- Remove the four dust stickers on the air paths.
 Before |

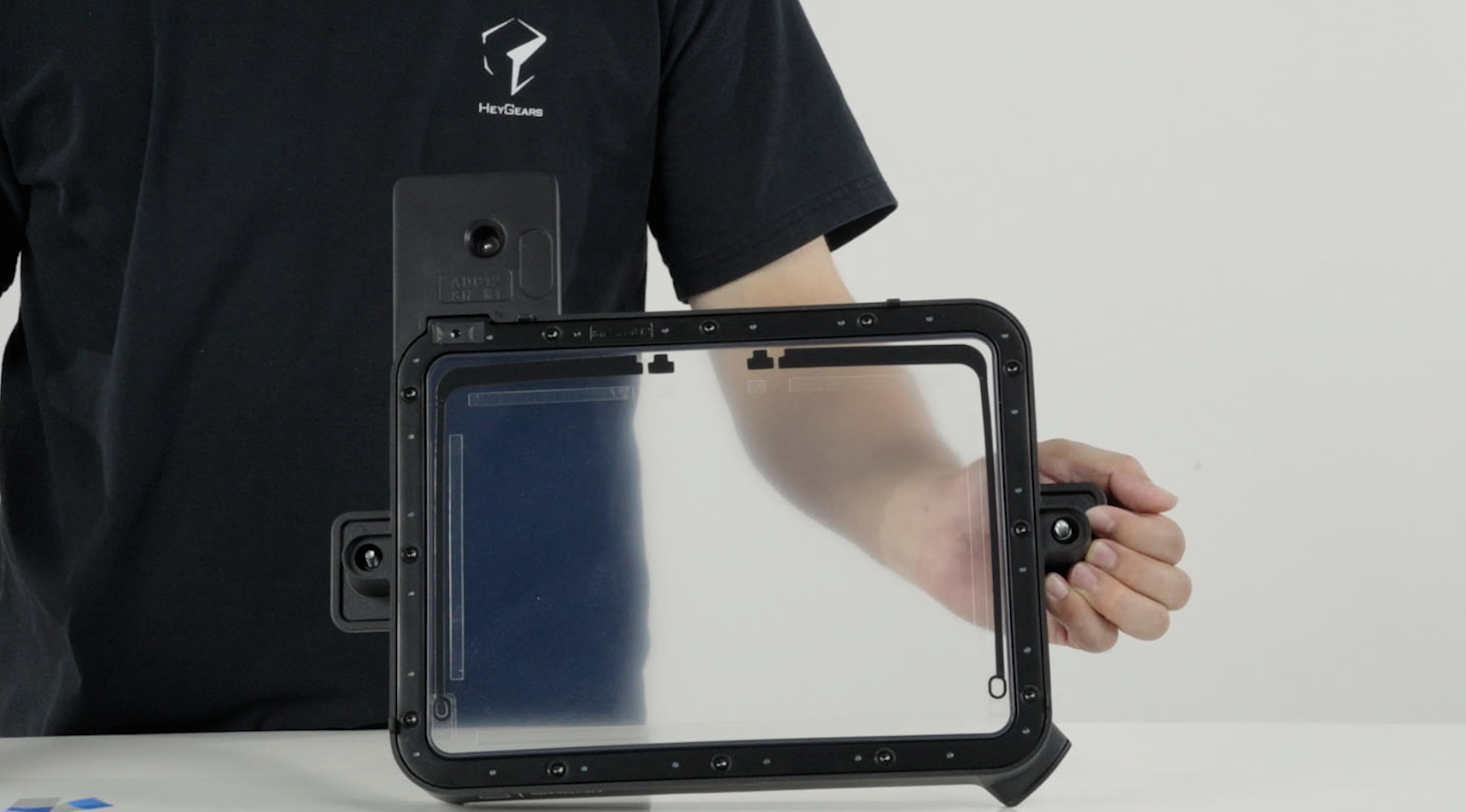

 After |

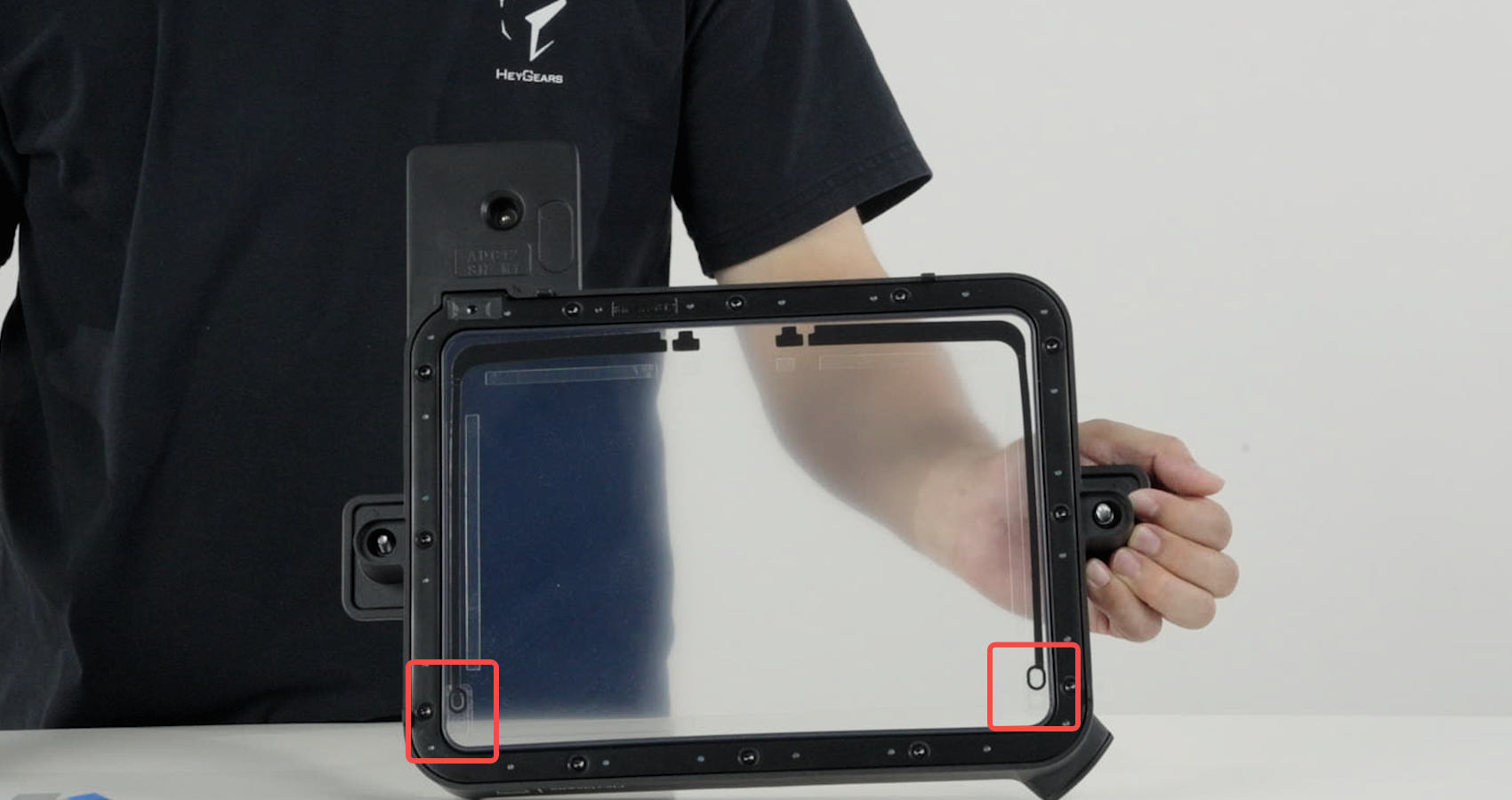

Note: Do not remove the two air path tapes at the bottom of the resin tank.
¶ Connect with the Printer
¶ 1.Preparation of Connection
-

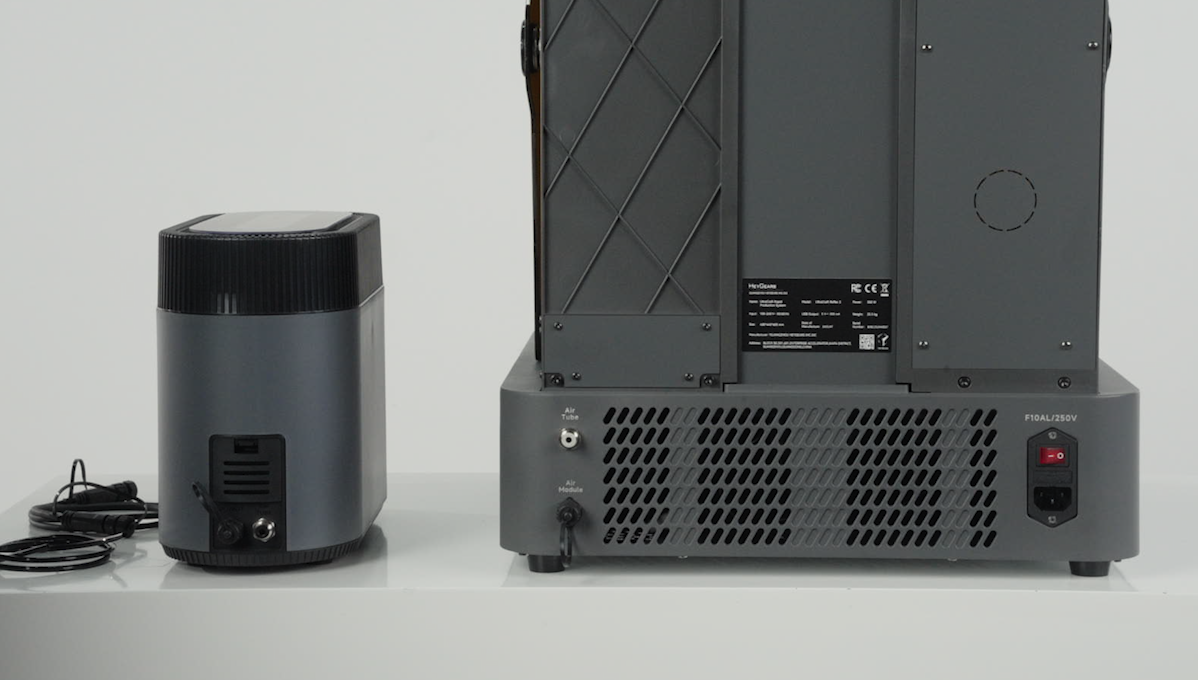

Place the pulsing release module beside the printer.
-
Take out the rubber stopper before connecting the pulsing release module to the printer.

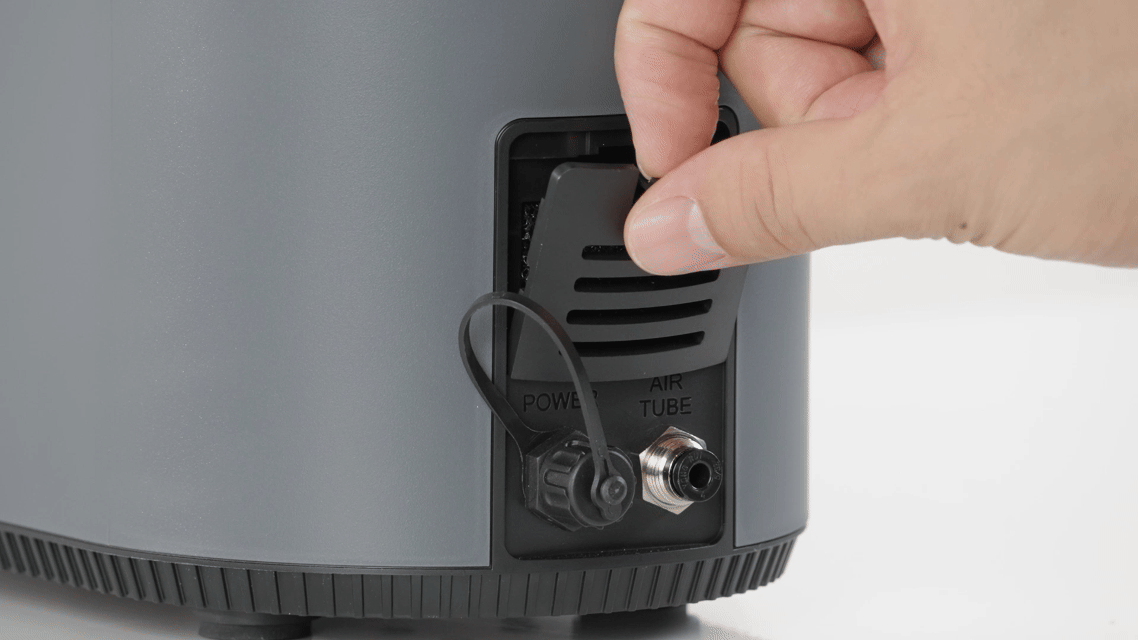

- Open the filter cover, take out the filter cotton, and take out the rubber stopper.
- Restore the equipment.
- Make sure the printer power is off before the connection.
¶ 2. Connect to the Printer and Power it On
-

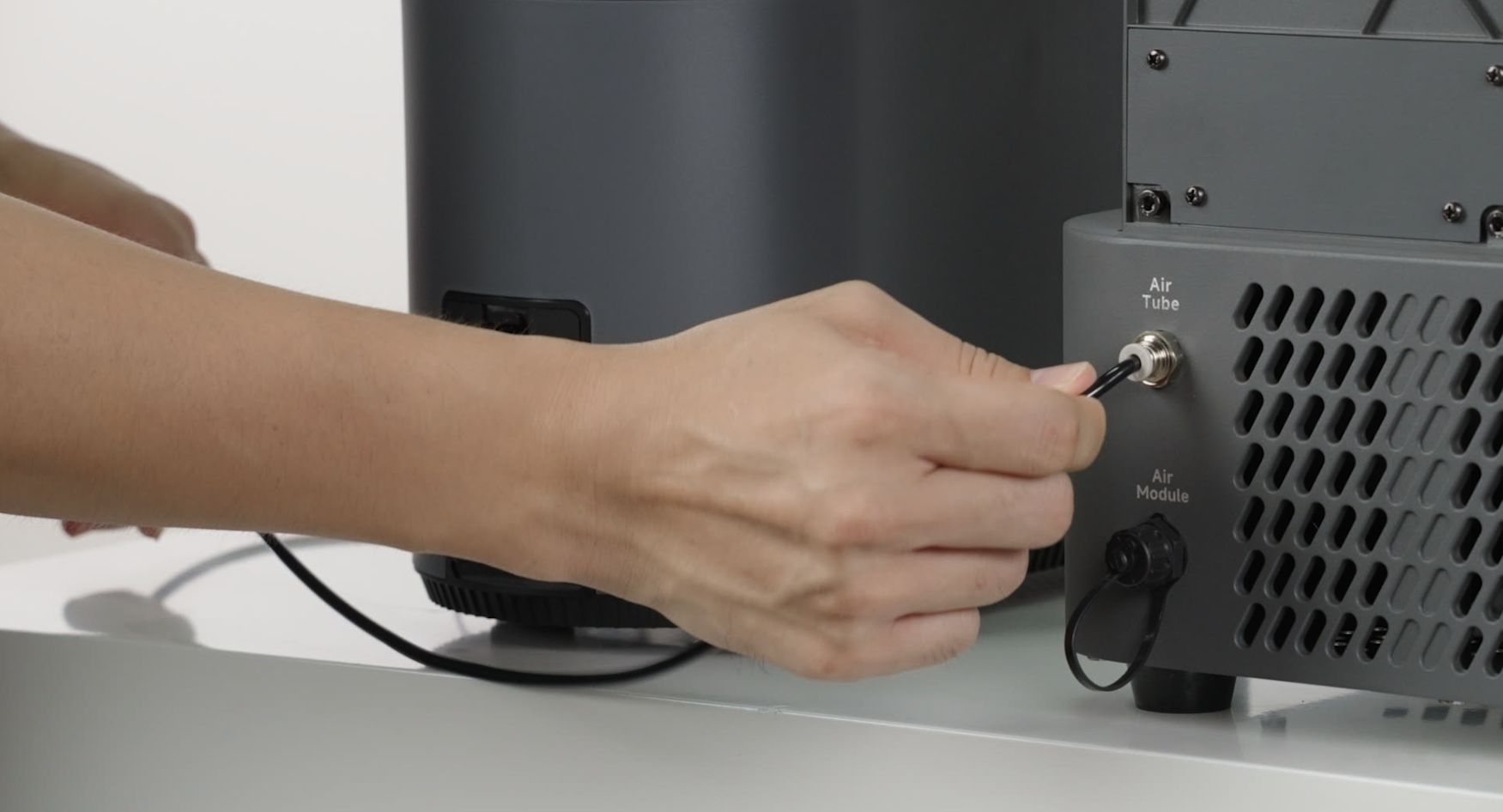

Insert the air tube in place make sure is securely installed. When disassembling the air tube, press the air path interface on the back of the printer and then pull out the air tube.
-
Pay attention to the direction of the groove on the power cord. Confirm that it is tightened after install.
 Install the air tube |
 Install the power cord |

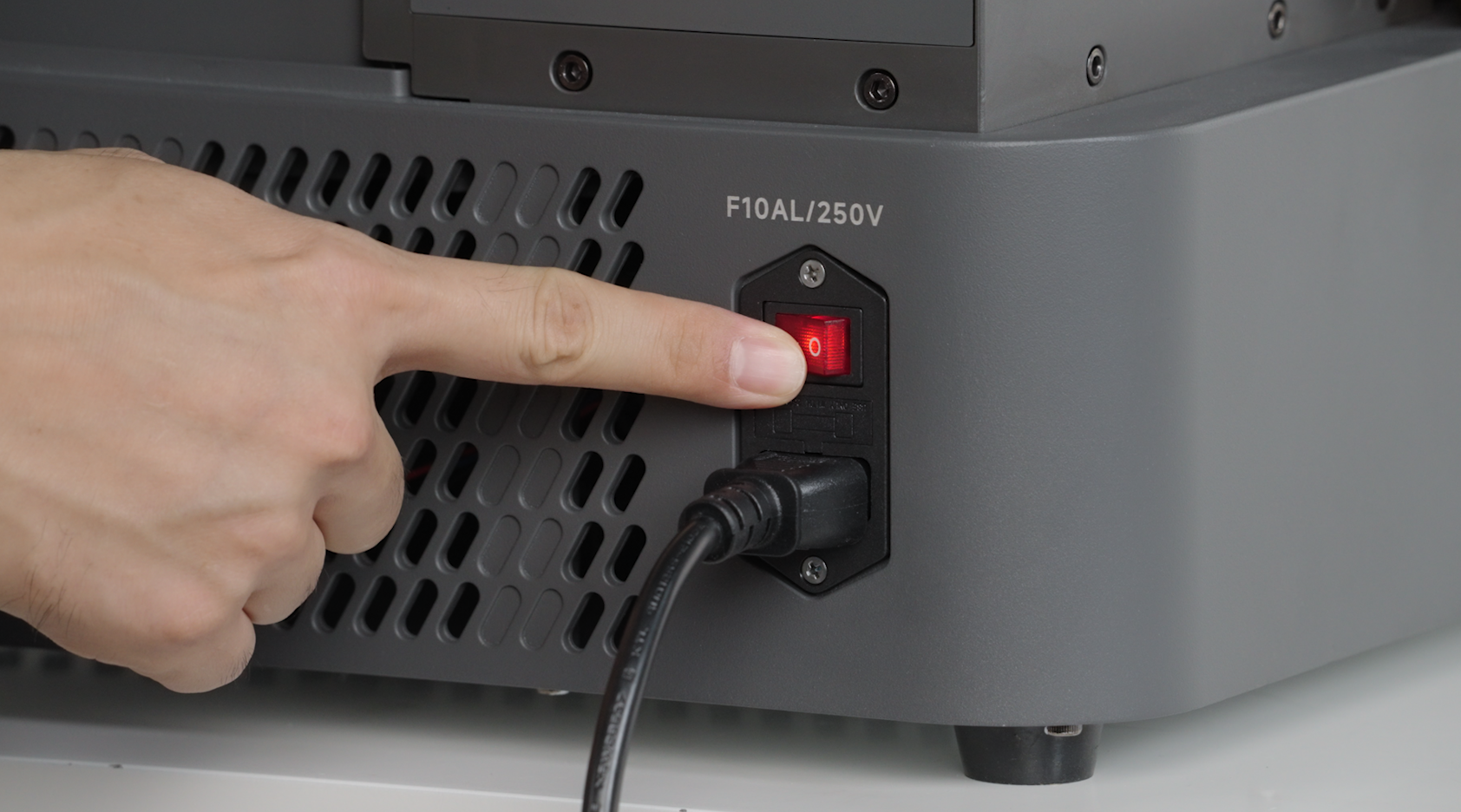

- Plug in the printer to the power supply and turn it on.

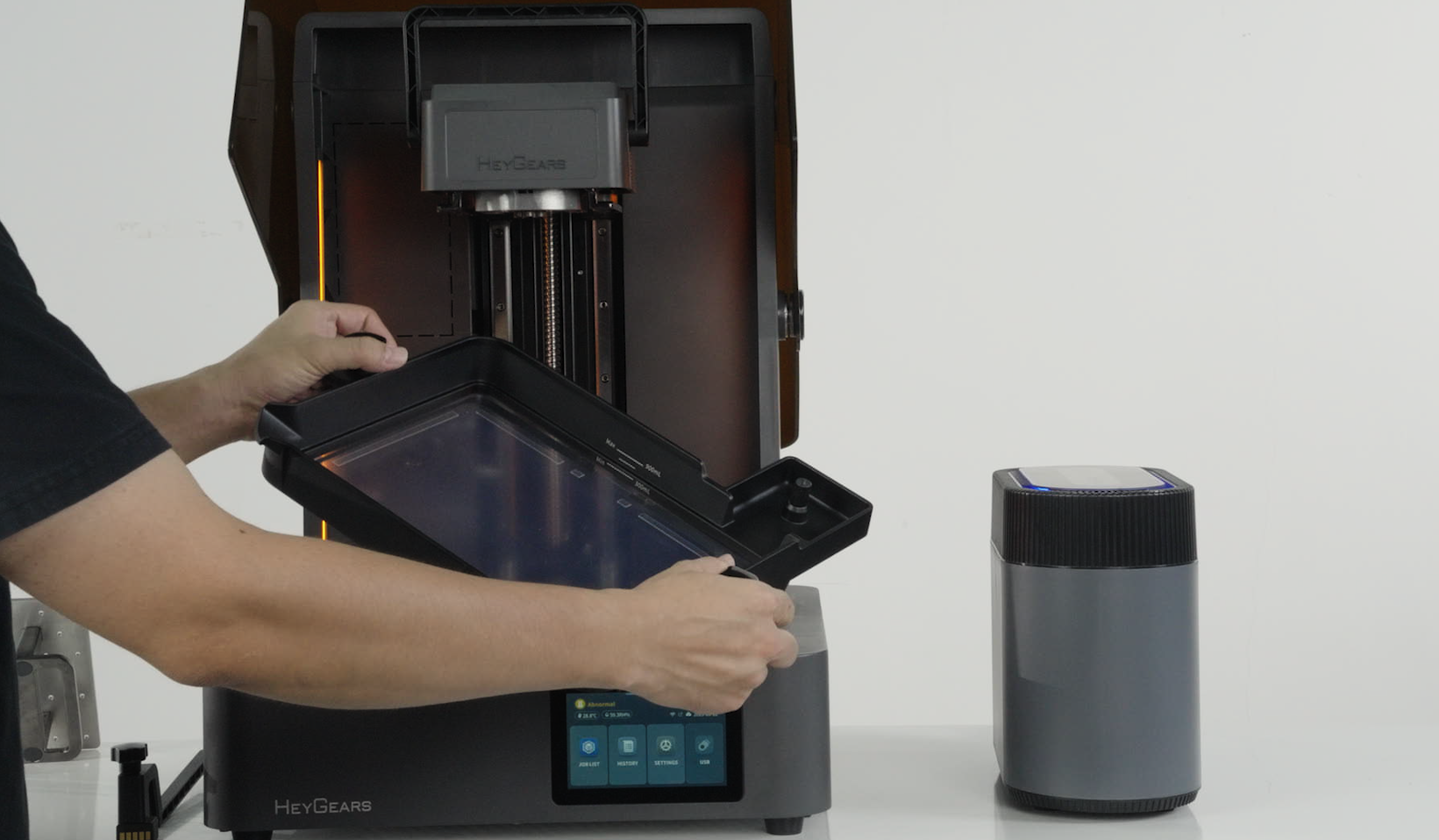

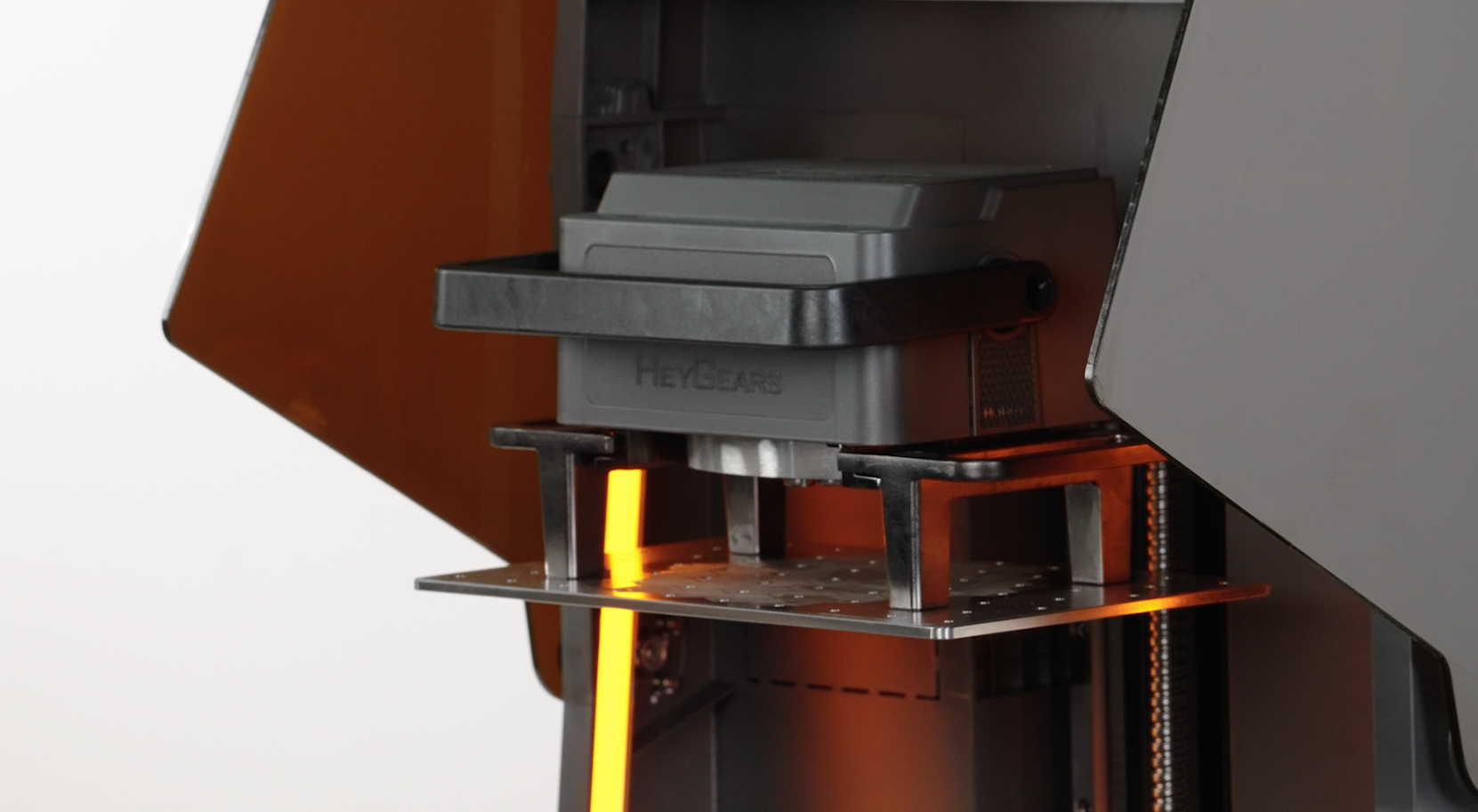

- Install the pulsing release resin tank, scraper, and build platform.
 |
 |
¶ Software Operation & Printing
¶ 1. Blueprint Studio Software Operation

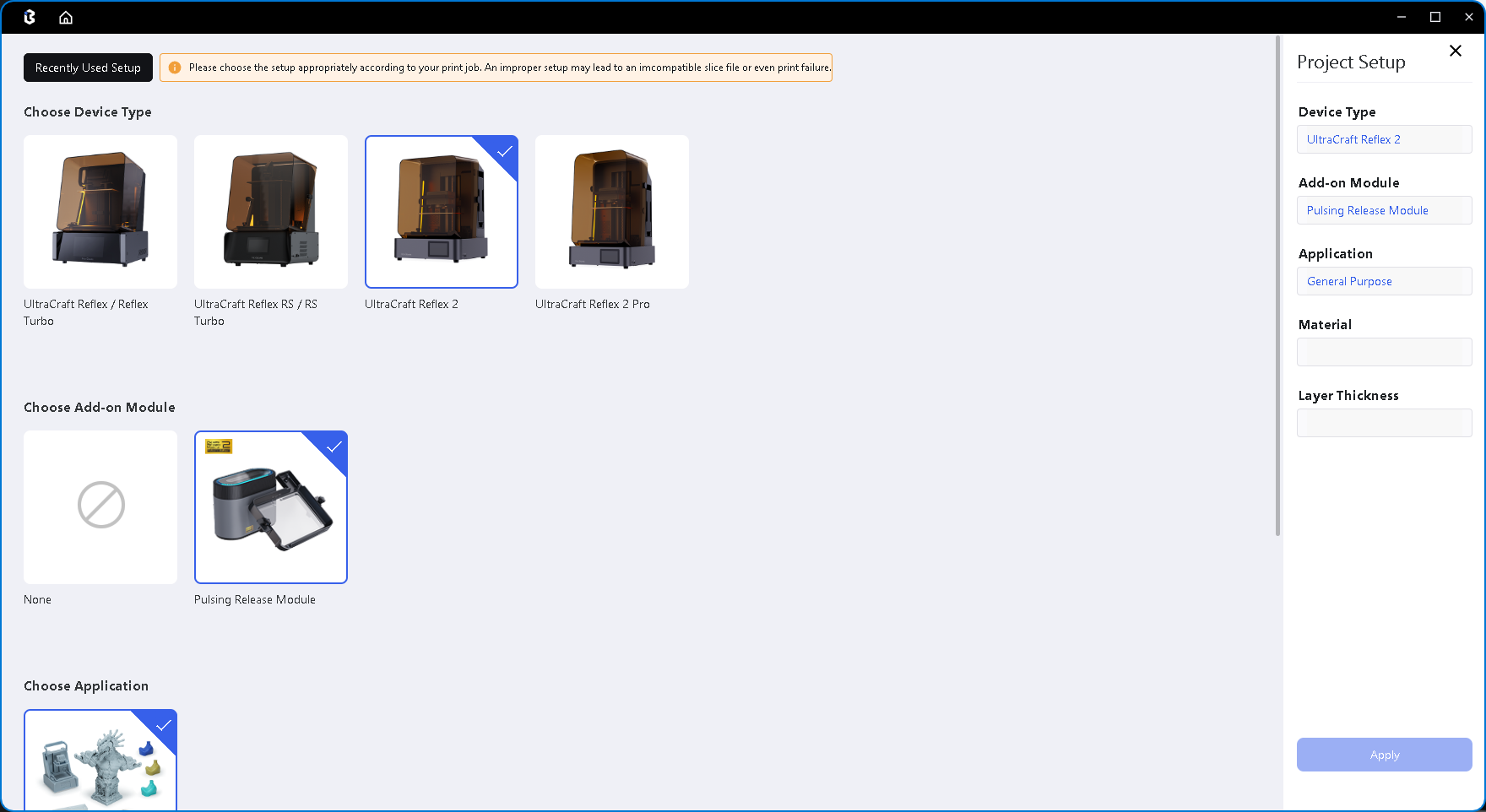

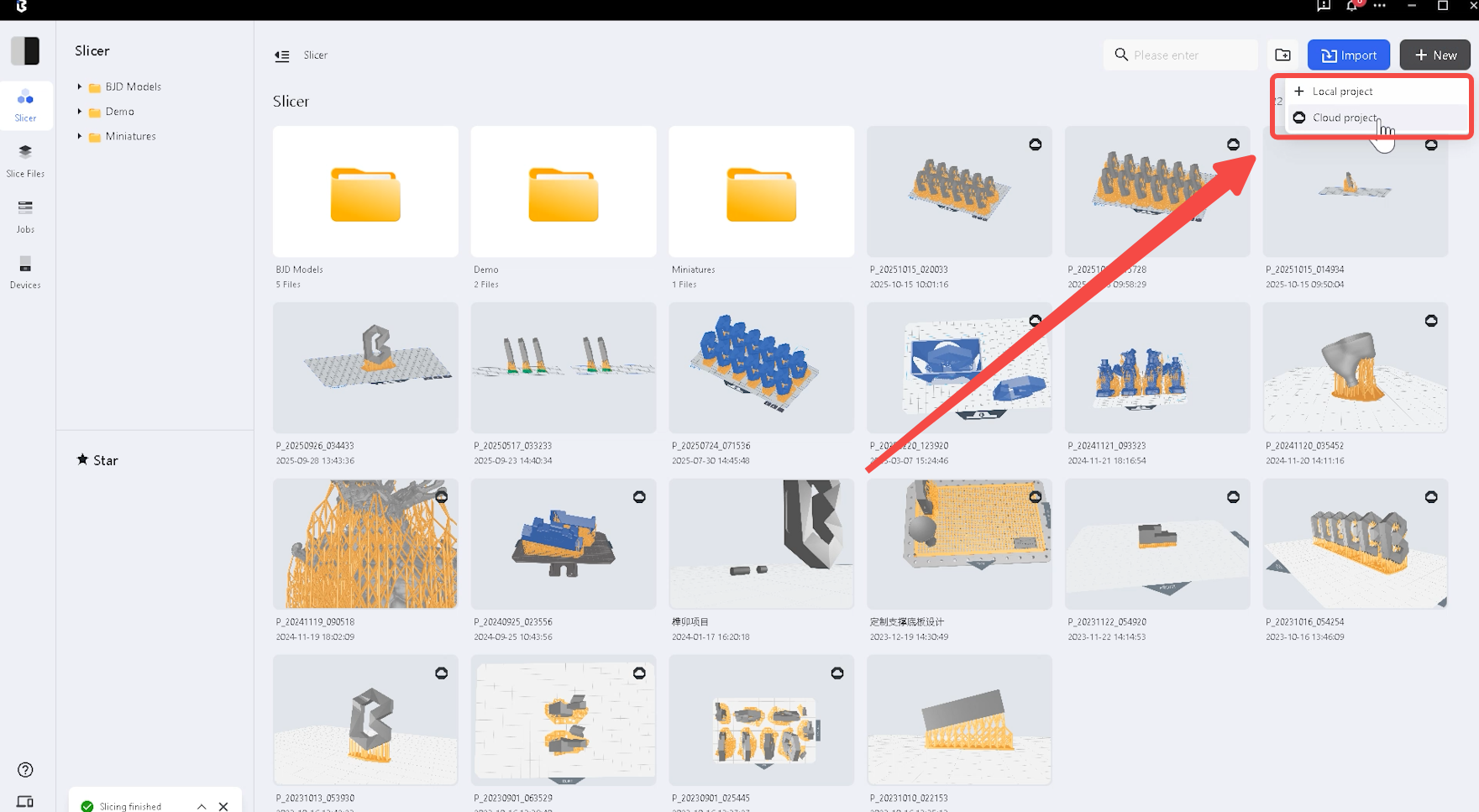

- Create a new project and select the pulsing release module.
 |
 |
-
Select the resin material to be printed, choose the layer thinckness, and import the model.
-
Slice the model.
¶ 2. Start printing

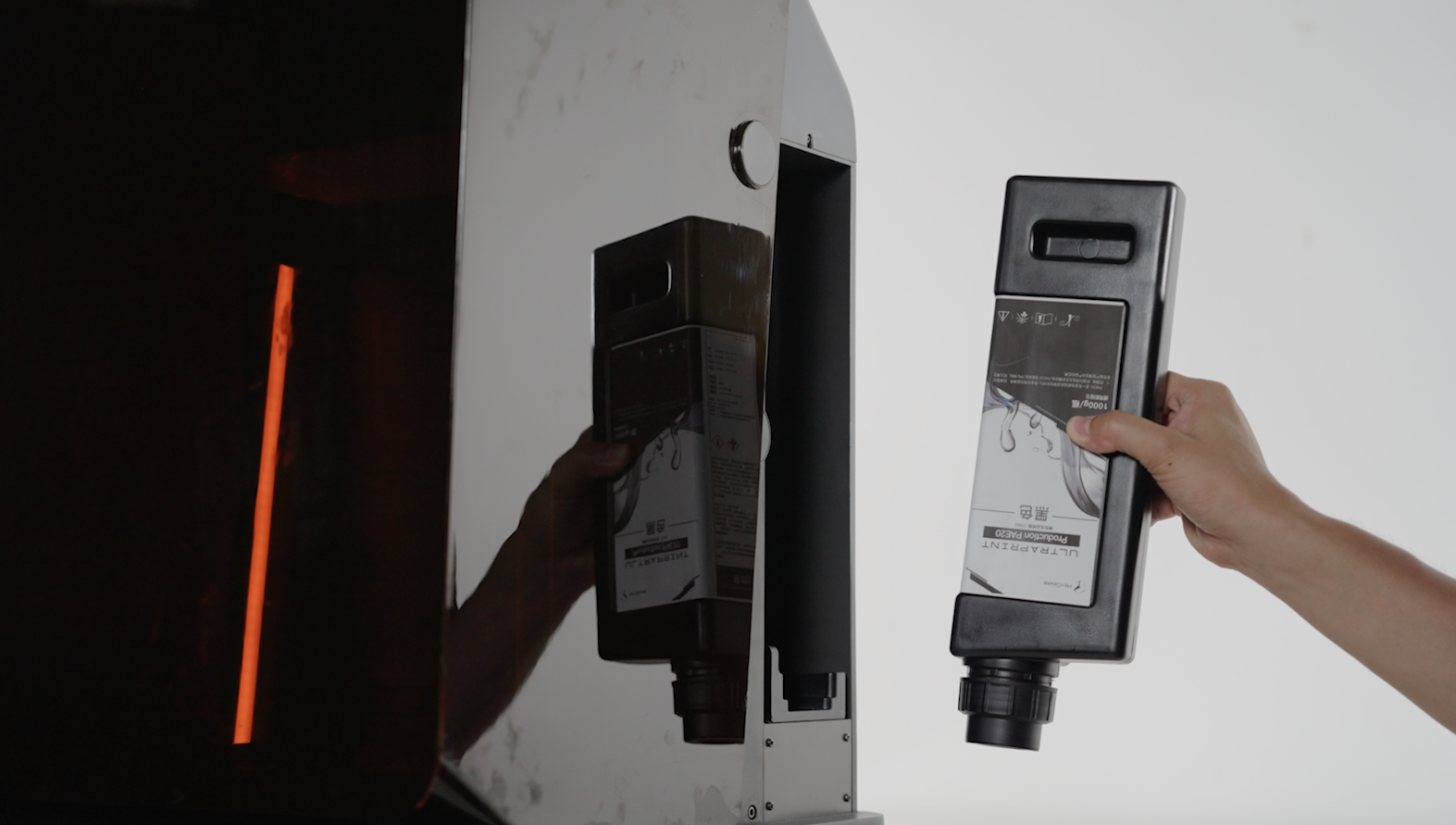

- Insert the corresponding resin into the printer and click "Print". The system will automatically detect if the pulsing release module is successfully connected.
 |
 |

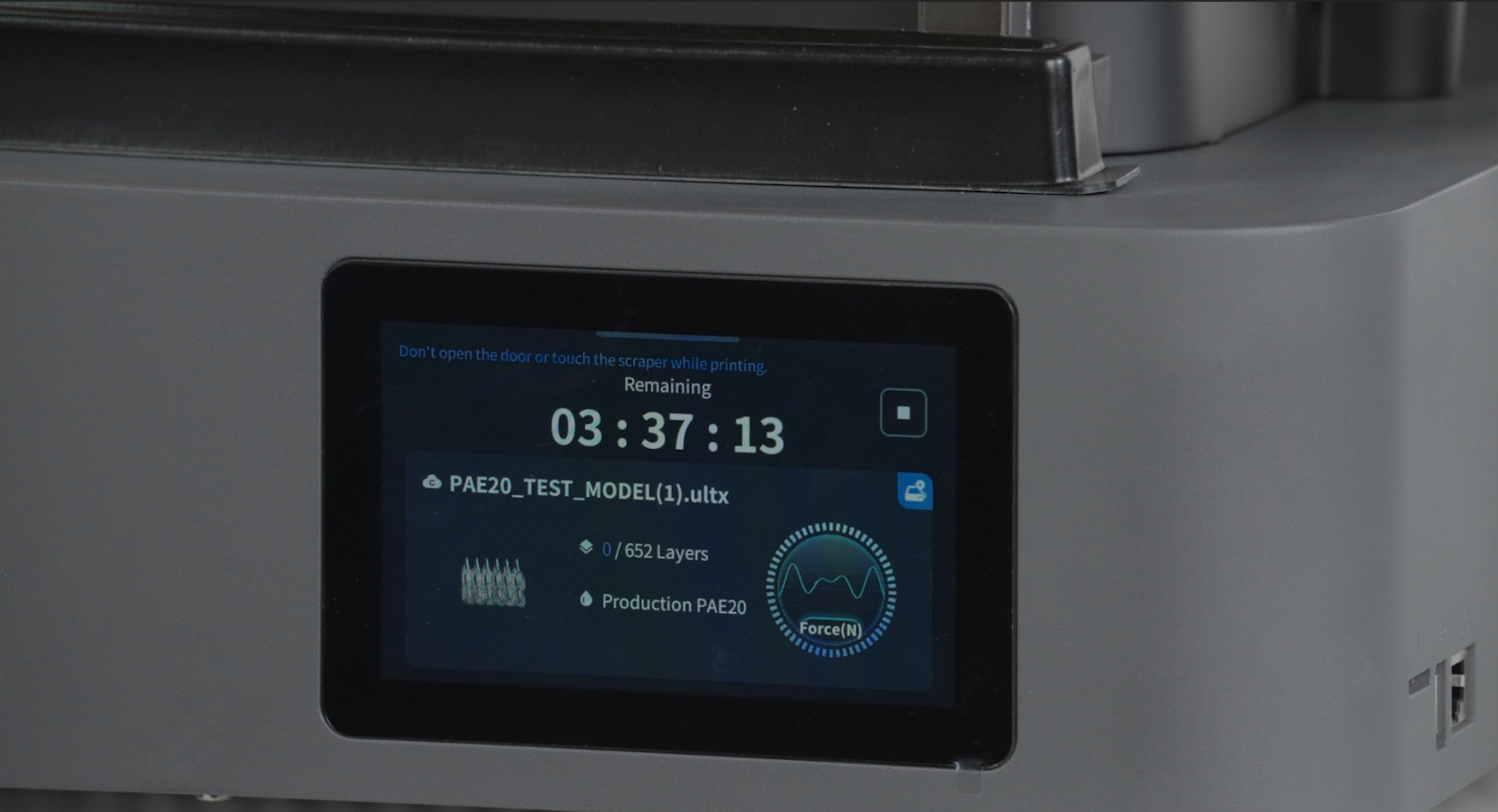

- When "Printing" appears, the installation of the pulsing release module and the printing process are completed.
